SMC3251S Datasheet - Semtron

Single P-Channel MOSFET

SMC3251S Features

* VDS=-30V, ID=-4A RDS(ON)=56mΩ(Typ.)@VGS=-10V RDS(ON)=78mΩ(Typ.)@VGS=-4.5V

* APPLICATIONS

* Portable Equipment

* Power Management

* Load Switch D D S G SOT-23L G S

* ABSOLUTE MAXIMUM RATINGS (TA = 25°C Unless otherwise noted ) Symbol VDSS VGSS Drain-Source Voltage Gate-Source Vo

SMC3251S General Description

SMC3251S is the P-Channel trench technology devices are well suited for high efficiency fast switching applications, low in-line power loss needed in small outline surface mount package. *PART NUMBER INFORMATION SMC 3251 S - TR G a b c de a : Company name. b : Product Serial number. c : Pack.

SMC3251S Datasheet (317.73 KB)

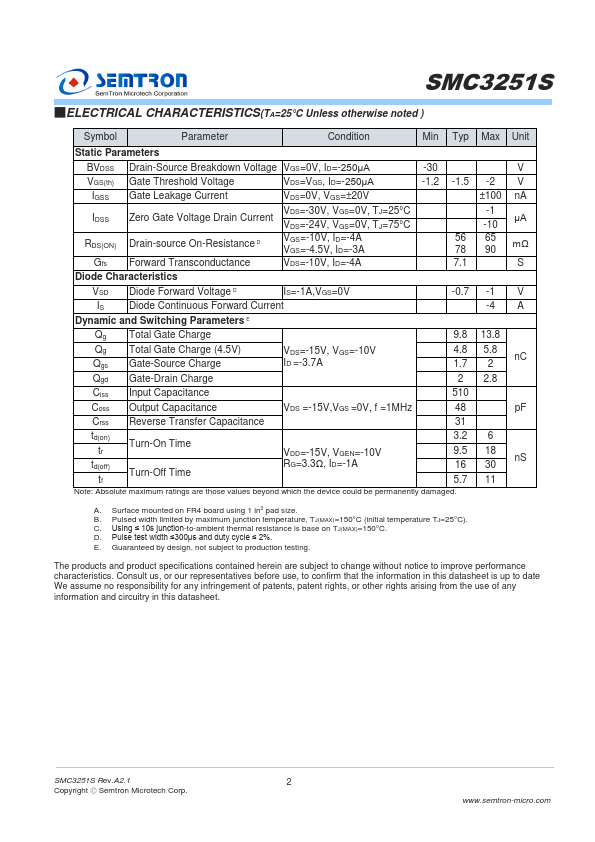

SMC3251S Datasheet Preview — Preview of SMC3251S PDF

Datasheet Details

Part number:

SMC3251S

Manufacturer:

Semtron

File Size:

317.73 KB

Description:

Single p-channel mosfet.
