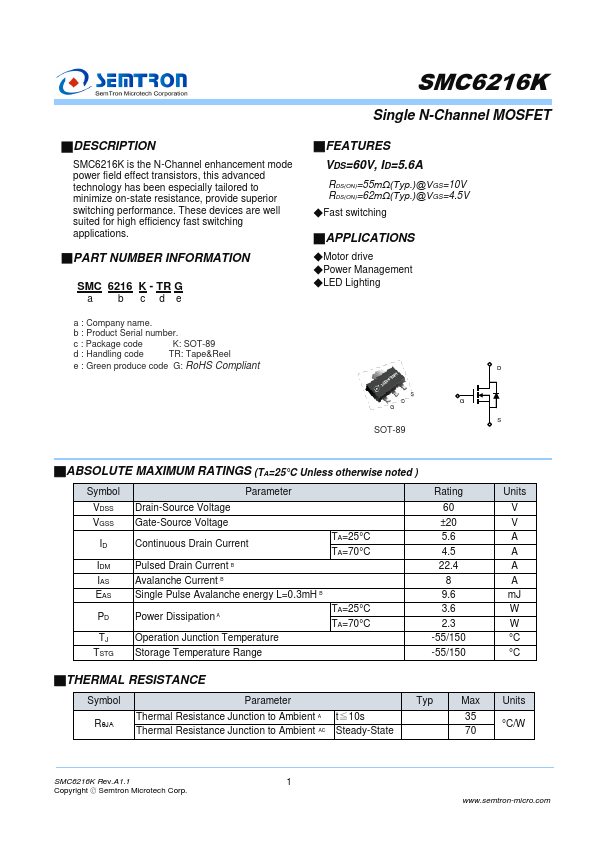

SMC6216K Datasheet - Semtron

SMC6216K Single N-Channel MOSFET

SMC6216K is the N-Channel enhancement mode power field effect transistors, this advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance. These devices are well suited for high efficiency fast switching applications. *PART NUMBER IN.

SMC6216K Features

* VDS=60V, ID=5.6A RDS(ON)=55mΩ(Typ.)@VGS=10V RDS(ON)=62mΩ(Typ.)@VGS=4.5V

* Fast switching

* APPLICATIONS

* Motor drive

* Power Management

* LED Lighting a : Company name. b : Product Serial number. c : Package code K: SOT-89 d : Handling code TR: Tape&Reel e : Green produce code

SMC6216K Datasheet (269.16 KB)

SMC6216K Datasheet Preview — Preview of SMC6216K PDF

Datasheet Details

Part number:

SMC6216K

Manufacturer:

Semtron

File Size:

269.16 KB

Description:

Single n-channel mosfet.
