SMC6216SN Single N-Channel MOSFET

SMC6216SN is the N-Channel enhancement mode power field effect transistors, this advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance. These devices are well suited for high efficiency fast switching applications. *PART NUMBER I.

SMC6216SN Features

* VDS=60V, ID=3.8A RDS(ON)=58mΩ(Typ.)@VGS=10V RDS(ON)=66mΩ(Typ.)@VGS=4.5V

* Fast switching

* APPLICATIONS

* Motor drive

* Power Management

* LED Lighting a : Company name. b : Product Serial number. c : Package code SN: SOT-23 d : Handling code TR: Tape&Reel e : Green produce cod

SMC6216SN Datasheet (255.42 KB)

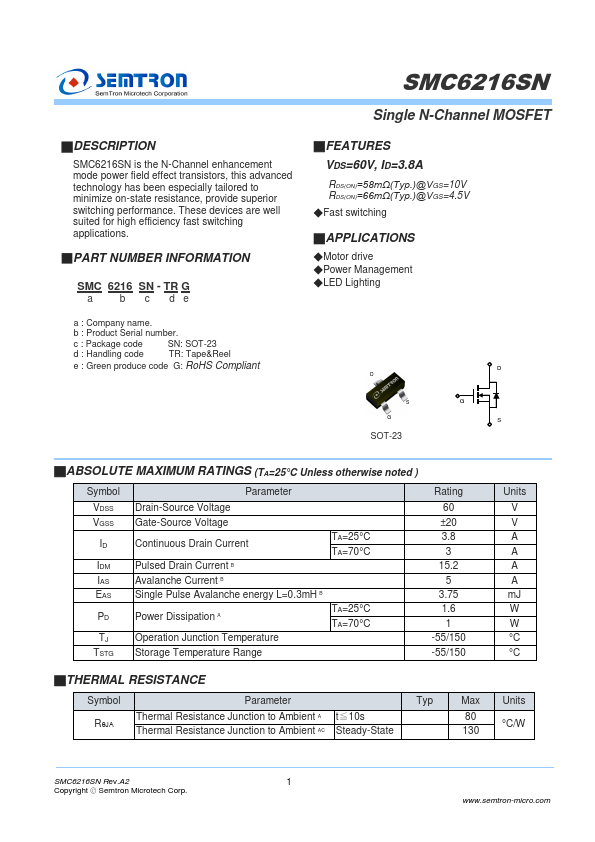

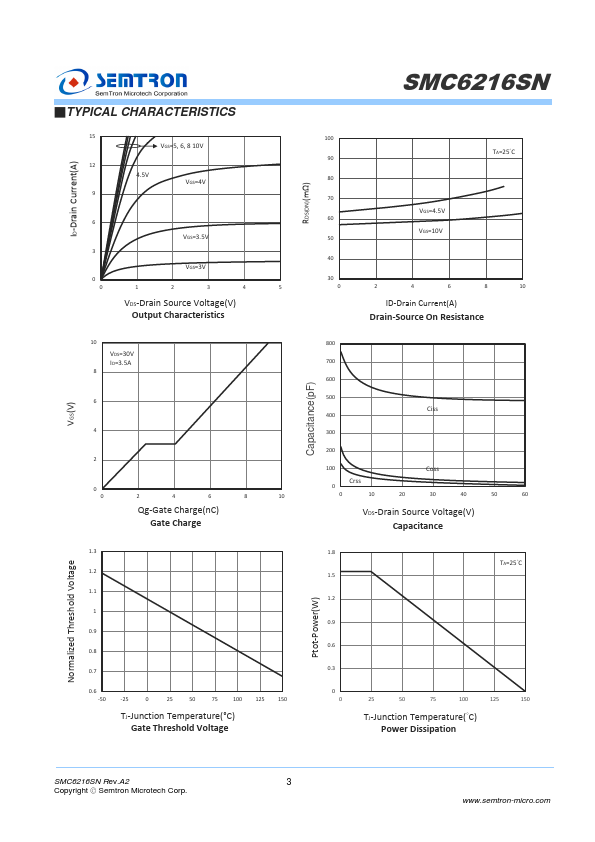

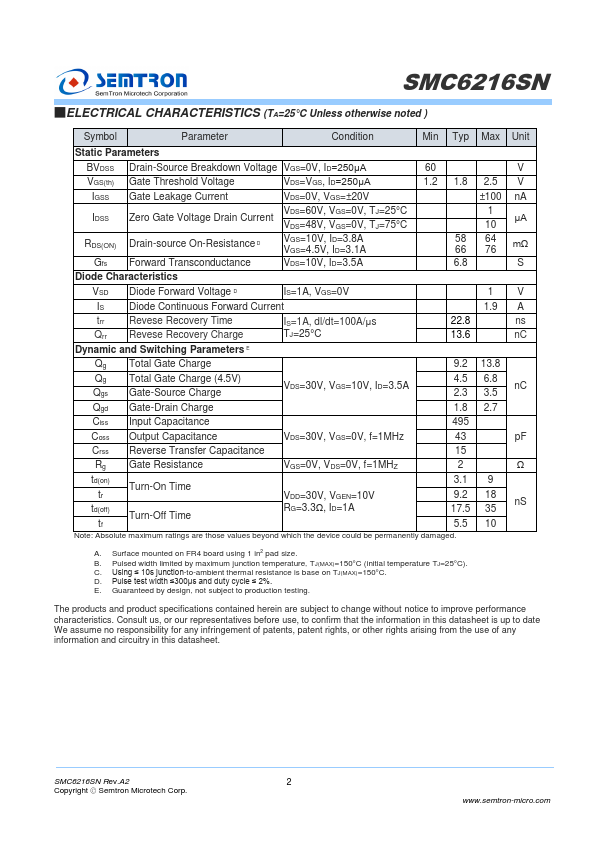

SMC6216SN Datasheet Preview — Preview of SMC6216SN PDF

Datasheet Details

Part number:

SMC6216SN

Manufacturer:

Semtron

File Size:

255.42 KB

Description:

Single n-channel mosfet.
