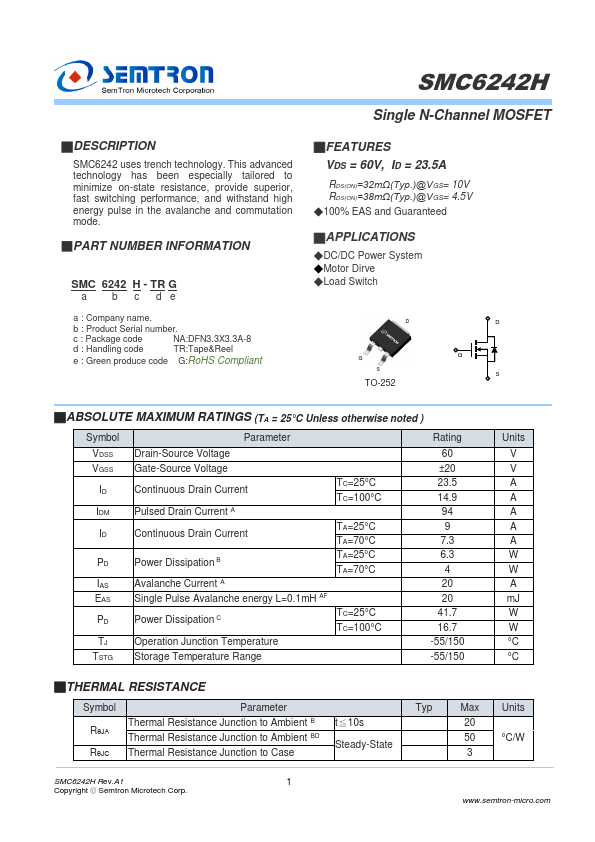

SMC6242H

Single N-Channel MOSFET

Semtron

SMC6242H Features

* VDS = 60V, ID = 23.5A RDS(ON)=32mΩ(Typ.)@VGS= 10V RDS(ON)=38mΩ(Typ.)@VGS= 4.5V

* 100% EAS and Guaranteed

* APPLICATIONS

* DC/DC Power System

* Motor Dirve

* Load Switch a : Company name. b : Product Serial number. c : Package code NA:DFN3.3X3.3A-8 d : Handling code TR:Tape&Reel

SMC6242H General Description

SMC6242 uses trench technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior, fast switching performance, and withstand high energy pulse in the avalanche and commutation mode.
*PART NUMBER INFORMATION SMC 6242 H - TR G a b c de
*FE.

SMC6242H Datasheet (368.63 KB)

SMC6242H Datasheet Preview — Preview of SMC6242H PDF

Datasheet Details

Part number:

SMC6242H

Manufacturer:

Semtron

File Size:

368.63 KB

Description:

Single n-channel mosfet.
