SMC6605 Fast Transient Response LDO

SMC6605 Description

SMC6605SR SMC6605 500mA Low noise, High PSRR, Fast Transient Response LDO *.
The SMC6605 is a 500mA low noise and fast transient response liner regulator with adjustable output voltage and ultra-low dropout voltage.

SMC6605 Features

* Low Consumption Current: 38μA
* Shutdown Current

SMC6605 Applications

* Battery Powered Equipment
* Set-Top Box
* PCMCIA & New Card
* Mini PCI & PCI-Express Cards
* Laptop, Palmtops, Notebook Computers VOUT NC/FB EN GND VIN SOT-23-5L
* ABSOLUTE MAXIMUM RATINGS (TA=25°C Unless otherwise noted ) Symbol Parameter Rating Units VIN VOUT TJ Input

📥 Download Datasheet

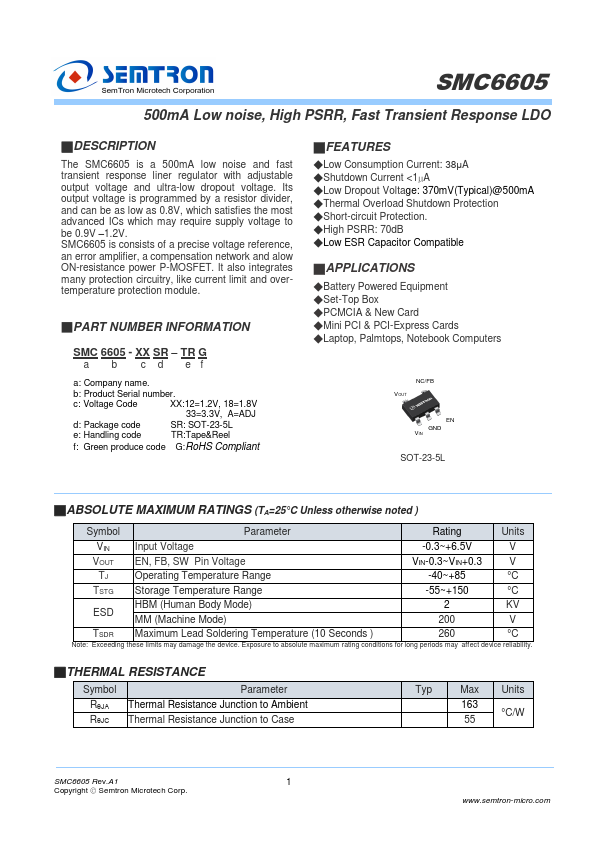

Preview of SMC6605 PDF

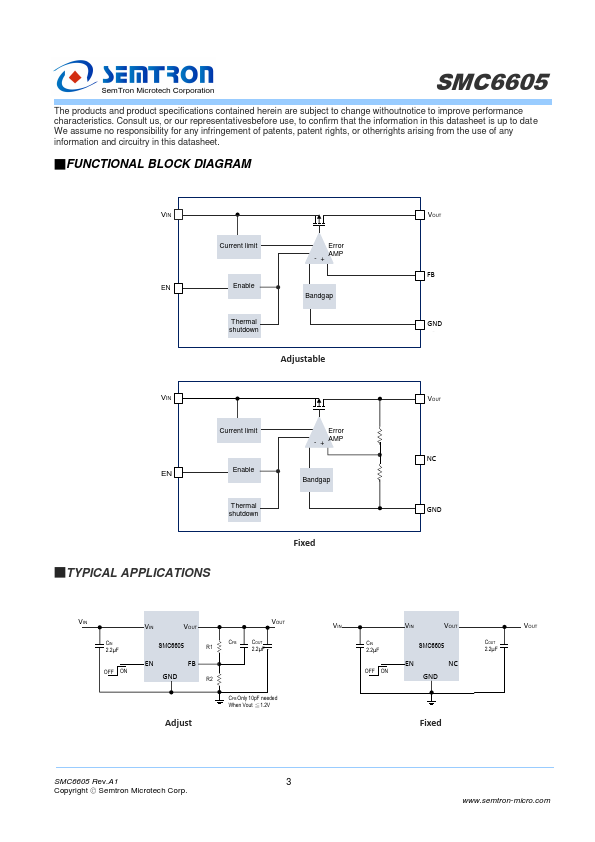

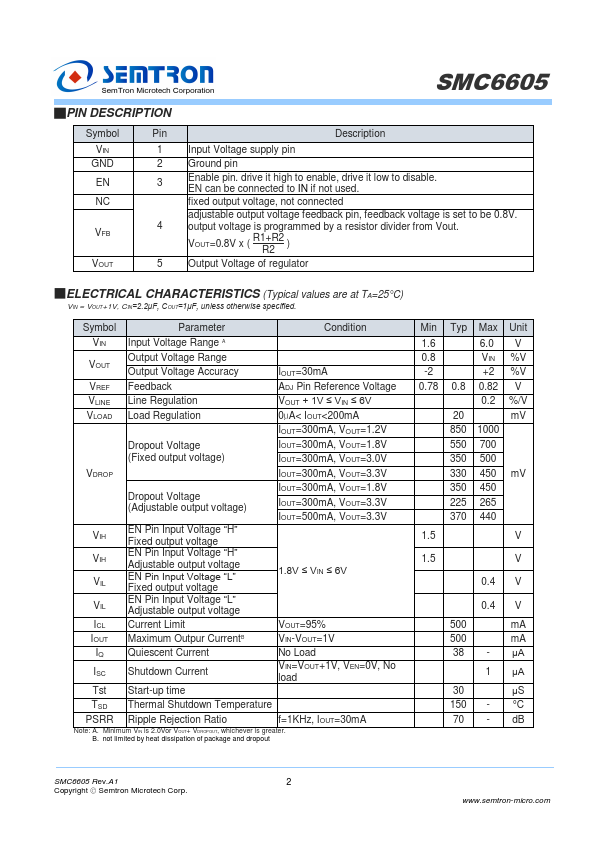

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SMC6605
Manufacturer
Semtron
File Size
405.60 KB
Datasheet
SMC6605-Semtron.pdf
Description
Fast Transient Response LDO
