SMC6276LESN - Single N-Channel MOSFET

Semtron

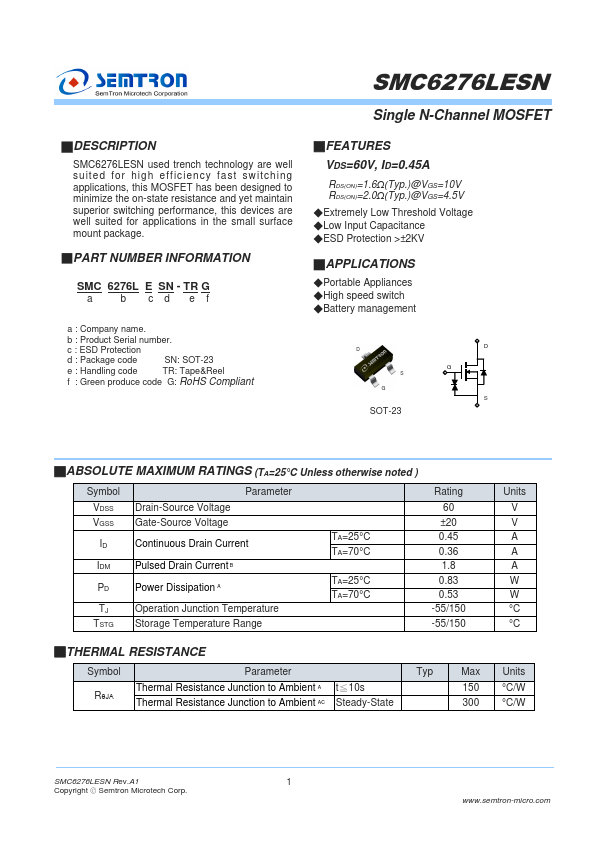

SMC6276LESN Datasheet Preview — Preview of SMC6276LESN PDF

Datasheet Details

Part number	SMC6276LESN
Manufacturer	Semtron
File Size	254.26 KB
Description	Single N-Channel MOSFET
Datasheet	SMC6276LESN-Semtron.pdf

SMC6276LESN Product details

Description

SMC6276LESN used trench technology are well suited for high efficiency fast switching applications, this MOSFET has been designed to minimize the on-state resistance and yet maintain superior switching performance, this devices are well suited for applications in the small surface mount package. PART NUMBER INFORMATION SMC 6276L E SN - TR G a b cd ef a : Company name.b : Product Serial number.c : ESD Protection d : Package code SN: SOT-23 e : Handling code TR: Tape&Reel f : Gre

Features

VDS=60V, ID=0.45A RDS(ON)=1.6Ω(Typ. )@VGS=10V RDS(ON)=2.0Ω(Typ. )@VGS=4.5V.
Extremely Low Threshold Voltage.
Low Input Capacitance.
ESD Protection >±2KV.
