STIM210 - Multi-Axis Gyro Module

Product Overview

Sensonor

Datasheet Details

Part number	STIM210
Manufacturer	Sensonor
File Size	1.64 MB
Description	Multi-Axis Gyro Module
Datasheet	STIM210 Datasheet
Additional preview pages of the STIM210 datasheet.

Product details

Description

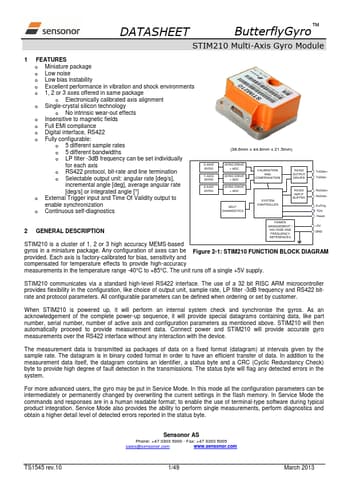

X-AXIS GYRO Y-AXIS GYRO Z-AXIS GYRO GYRO DRIVE + ADC GYRO DRIVE + ADC GYRO DRIVE + ADC SELFDIAGNOSTICS CALIBRATION AND COMPENSATION SYSTEM CONTROLLER RS422 OUTPUT DRIVER RS422 INPUT BUFFER (38.6mm x 44.8mPmOWxER21.5mm) MANAGEMENT / VOLTAGE AND FREQUENCY REFERENCES TxData+ TxData- RxData+ RxData- ExtTrig TOV Reset +5V GND STIM210 is a cluster of 1, 2 or 3 high accuracy MEMS-based gyros in a miniature package.Any configuration of axes can be Figure 2-1: STIM210 FUNCTION BLOCK DIAGRAM prov

Features

o Miniature package o Low noise o Low bias instability o Excellent performance in vibration and shock environments o 1, 2 or 3 axes offered in same package o Electronically calibrated axis alignment o Single-crystal silicon technology o No intrinsic wear-out effects o Insensitive to magnetic fields o Full EMI compliance o Digital interface, RS422 o Fully configurable: o 5 different sample rates o 5 different bandwidths o LP filter -3dB frequency can be set individually (38.6mm x 44.8mm x 21.5mm.
