BL0306

Digital Echo

BL0306 Features

* ¡¤ Low noise(-90dBV typ.) ¡¤ Low distortion(0.5% typ.) ¡¤ 3 mode delay time (100,150,200ms) ¡¤ Includes auto mute circuit to protect sound from digital noise caused by delay time mode change or power on. w w w t a .D S a PDIP 36Pin e h U 4 t e .c m o BL0306 Address£º No.810, YiShan Road

BL0306 General Description

The BL0306 is a digital ECHO IC fabricated with silicon gate CMOS technology . The BL0306 converts an input analog signal to a digital signal and writes it into a memory IC,After a delay it reads out the digital signal from the memory IC and then converts to an analog signal again. Lower noise and d.

BL0306 Datasheet (59.88 KB)

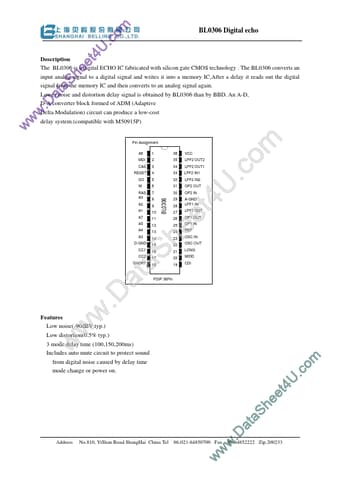

Preview of BL0306 PDF

Datasheet Details

Part number:

BL0306

Manufacturer:

Shanghai Belling

File Size:

59.88 KB

Description:

Digital echo.
