Part number:
GP2L22
Manufacturer:
Sharp Electrionic Components
File Size:
47.34 KB
Description:
Subminiature/ high sensitivity photointerrupter.

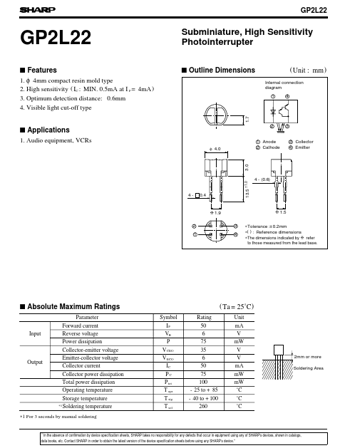

* 1. φ 4mm compact resin mold type 2. High sensitivity ( IC : MIN. 0.5mA at I F = 4mA ) 3. Optimum detection distance: 0.6mm 4. Visible light cut-off type Subminiature, High Sensitivity Photointerrupter s Outline Dimensions ( Unit : mm ) Internal connection diagram 1 4 1.7 s Applications 1. Audio e
GP2L22
Sharp Electrionic Components
47.34 KB
Subminiature/ high sensitivity photointerrupter.
