LM40X21 - Character Type LCD Module(FA/POS/Measuring instruments)

Product Overview

Sharp Electrionic Components

Part number	LM40X21
Manufacturer	Sharp Electrionic Components
File Size	19.99 KB
Description	Character Type LCD Module(FA/POS/Measuring instruments)
Datasheet	LM40X21 Datasheet

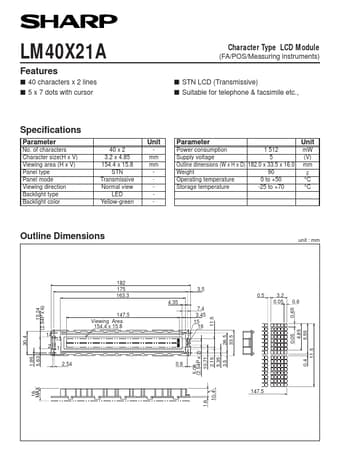

Additional preview pages of the LM40X21 datasheet.

s 40 characters x 2 lines s 5 x 7 dots with cursor Character Type LCD Module (FA/POS/Measuring instruments) s STN LCD (Transmissive) s Suitable for telephone & facsimile etc. , Specifications Parameter No. of characters Character size(H x V) Viewing area (H x V) Panel type Panel mode Viewing direction Backlight type Backlight color 40 x 2 3.2 x 4.85 154.4 x 15.8 STN Transmissive Normal view LED Yellow-green Unit mm mm - Parameter Power consumption 1 512 Supply voltage 5 Outline dimensions (W.
