PQ1CG38M2FZH - TO-220 Type Chopper Regulator

PQ1CG38M2FZH Description

www.DataSheet4U.com PQ1CG38M2FZH/PQ1CG38M2RZH PQ1CG38M2FZH PQ1CG38M2RZH .

PQ1CG38M2FZH Features

* 1.Maximum switching current: 0.8A 2.Built-in ON/OFF control function 3.Built-in soft start function to suppress overshoot of output voltage in power on sequence or ON/OFF control sequence 4.Built-in oscillation circuit (Oscillation frequency: TYP. 300kHz) 5.Built-in overheat,overcurrent protection f

PQ1CG38M2FZH Applications

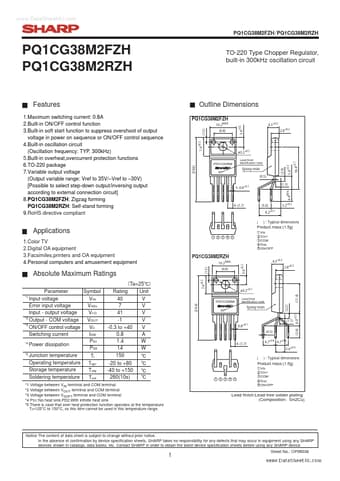

* 1 2 3 4 5 Product mass:(1.5g) ①VIN ②VOUT ③COM ④Oadj ⑤ON/OFF 3.6±0.2 1.Color TV 2.Digital OA equipment 3.Facsimiles,printers and OA equipment 4.Personal computers and amusement equipment PQ1CG38M2RZH 10.2MAX. (1.5) 4.5±0.2 2.8±0.2 (6.8) Absolute Maximum Ratings Parameter Symbol
* 1 VIN Inpu
