PQ1CX12H2ZPQ Datasheet, Regulator, Sharp Electrionic

PQ1CX12H2ZPQ Features

  • Regulator 1.Maximum switching current: 2.5A 2.High efficiency(efficiency:88%[VIN=5V,VOUT=3.3V] 3.Built-in oscillation circuit (Oscillation frequency:TYP.150kHz) 5.Variable output voltage (Output

PDF File Details

Part number:

PQ1CX12H2ZPQ

Manufacturer:

Sharp Electrionic

File Size:

176.99kb

Download:

📄 Datasheet

Description:

Bootstrap system chopper regulator.

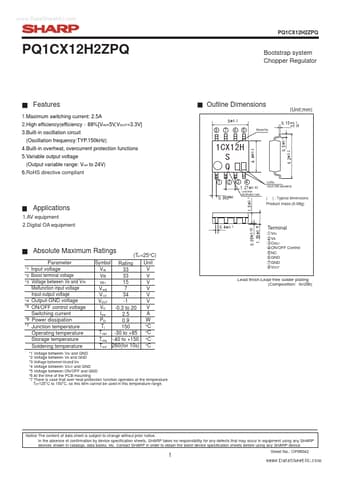

Datasheet Preview: PQ1CX12H2ZPQ 📥 Download PDF (176.99kb)
Page 2 of PQ1CX12H2ZPQ Page 3 of PQ1CX12H2ZPQ

PQ1CX12H2ZPQ Application

  • Applications 1.AV equipment 2.Digital OA equipment 0.4±0.1 Product mass:(0.08g) 0.05±0.05 1.55±0.15 Terminal ①VIN ②VB ③OADJ ④ON/OFF Control ⑤NC ⑥
