PQ1CG38M2RZH, PQ1CG38M2FZH, TO-220 Type Chopper Regulator

www.DataSheet4U.com PQ1CG38M2FZH/PQ1CG38M2RZH PQ1CG38M2FZH PQ1CG38M2RZH .

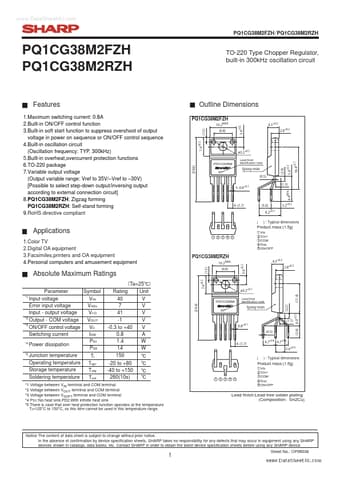

datasheet Preview Page 1 from Datasheet4u.com

PQ1CG38M2FZH_SharpElectrionic.pdf

PQ1CG38M2RZH Datasheet Preview — This datasheet PDF includes multiple part numbers: PQ1CG38M2RZH, PQ1CG38M2FZH. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PQ1CG38M2RZH, PQ1CG38M2FZH

Manufacturer:

Sharp Electrionic

File Size:

181.15 KB

Description:

TO-220 Type Chopper Regulator

Note:

This datasheet PDF includes multiple part numbers: PQ1CG38M2RZH, PQ1CG38M2FZH.
Please refer to the document for exact specifications by model.

Features

* 1.Maximum switching current: 0.8A 2.Built-in ON/OFF control function 3.Built-in soft start function to suppress overshoot of output voltage in power on sequence or ON/OFF control sequence 4.Built-in oscillation circuit (Oscillation frequency: TYP. 300kHz) 5.Built-in overheat,overcurrent protection f

Applications

* 1 2 3 4 5 Product mass:(1.5g) ①VIN ②VOUT ③COM ④Oadj ⑤ON/OFF 3.6±0.2 1.Color TV 2.Digital OA equipment 3.Facsimiles,printers and OA equipment 4.Personal computers and amusement equipment PQ1CG38M2RZH 10.2MAX. (1.5) 4.5±0.2 2.8±0.2 (6.8) Absolute Maximum Ratings Parameter Symbol
