PQ1CG2032FZH - TO-220 Type Chopper Regulator

PQ1CG2032FZH Description

PQ1CG2032FZH/PQ1CG2032RZH PQ1CG2032FZH PQ1CG2032RZH .

PQ1CG2032FZH Features

* 1.Maximum switching current: 3.5A 2.Built-in ON/OFF control function 3.Built-in soft start function to suppress overshoot of output voltage in power on sequence or ON/OFF control sequence 4.Built-in oscillation circuit (Oscillation frequency: TYP. 70kHz) 5.Built-in overheat,overcurrent protection fu

PQ1CG2032FZH Applications

* 1 2 3 4 5 Product mass:(1.5g) ①VIN ②VOUT ③COM ④Oadj ⑤ON/OFF 3.6±0.2 1.Switching power supplies 2.Facsimiles,printers and OA equipment 3.Battery chargers 4.Personal computers and amusement equipment PQ1CG2032RZH (1.5) 10.2MAX. (6.8) 4.5±0.2 2.8±0.2 Parameter Symbol
* 1 Input voltage VIN Err

📥 Download Datasheet

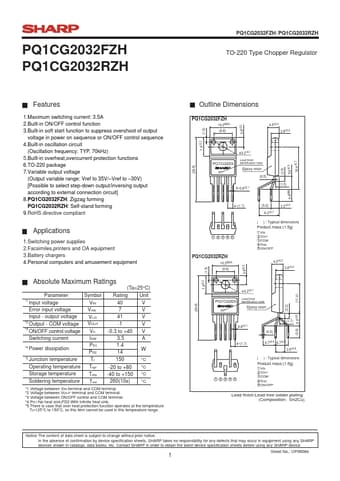

Preview of PQ1CG2032FZH PDF
