PQ1CY1032Z, TO-263 Surface Mount Type Chopper Regulator

PQ1CY1032Z PQ1CY1032Z TO-263 Surface Mount Type Chopper Regulator s .

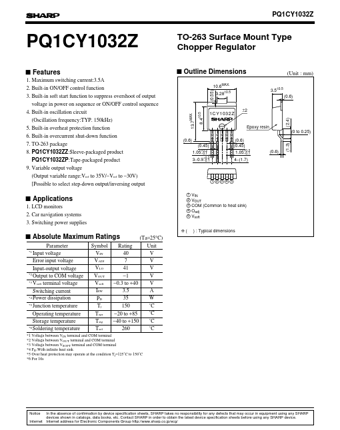

datasheet Preview Page 1 from Datasheet4u.com

PQ1CY1032Z_SharpMicroelectronics.pdf

PQ1CY1032Z Datasheet Preview — Preview of PQ1CY1032Z PDF

Datasheet Details

Part number:

PQ1CY1032Z

Manufacturer:

Sharp Microelectronics

File Size:

86.52 KB

Description:

TO-263 Surface Mount Type Chopper Regulator

Features

* 1. Maximum switching current:3.5A 2. Built-in ON/OFF control function 3. Built-in soft start function to suppress overshoot of output voltage in power on sequence or ON/OFF control sequence 4. Built-in oscillation circuit (Oscillation frequency:TYP. 150kHz) 5. Built-in overheat protection function 6

Applications

* 1. LCD monitors 2. Car navigation systems 3. Switching power supplies s Absolute Maximum Ratings (Ta=25°C) Parameter
* 1 Input voltage Error input voltage Input-output voltage
* 2 Output to COM voltage
* 3 Vsoft terminal voltage Switching current
* 4 Power dissipation Symbol VIN VADJ
