PQ1CY1032ZZH, PQ1CY1032ZXH Datasheet - Sharp Electrionic

PQ1CY1032ZZH, PQ1CY1032ZXH, To-263 Surface Mount Type Chopper Regulator

www.DataSheet4U.com PQ1CY1032ZxH PQ1CY1032ZxH To-263 Surface Mount Type Chopper Regulator .

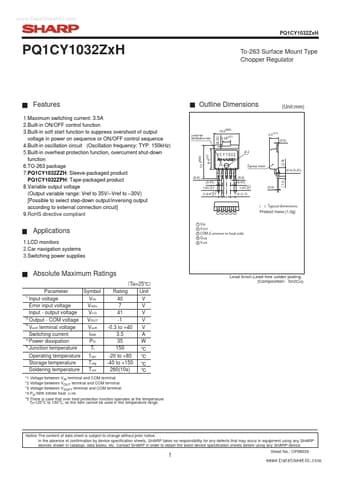

datasheet Preview Page 1 from Datasheet4u.com

PQ1CY1032ZXH_SharpElectrionic.pdf

PQ1CY1032ZZH Datasheet Preview — This datasheet PDF includes multiple part numbers: PQ1CY1032ZZH, PQ1CY1032ZXH. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PQ1CY1032ZZH, PQ1CY1032ZXH

Manufacturer:

Sharp Electrionic

File Size:

187.44 KB

Description:

To-263 Surface Mount Type Chopper Regulator

Note:

This datasheet PDF includes multiple part numbers: PQ1CY1032ZZH, PQ1CY1032ZXH.
Please refer to the document for exact specifications by model.

Features

* 1.Maximum switching current: 3.5A 2.Built-in ON/OFF control function 3.Built-in soft start function to suppress overshoot of output voltage in power on sequence or ON/OFF control sequence 4.Built-in oscillation circuit (Oscillation frequency: TYP. 150kHz) 5.Built-in overheat protection function, ove

Applications

* 1.LCD monitors 2.Car navigation systems 3.Switching power supplies 2 3 4 5 V IN V OUT COM (Common to heat sink) O adj V soft Absolute Maximum Ratings Parameter Symbol
* 1 VIN Input voltage Error input voltage VADJ Input - output voltage VI-O
* 2 Output - COM voltage VOUT
* 3 Vsoft termin
