PQ05RA11 - OFF-state Low Dissipation Current 1A Output / Low Power-Loss Voltage Regulators

PQ05RA11 Description

Low Power-Loss Voltage Regulators PQ05RA1/PQ05RA11 Series PQ05RA1/PQ05RA11 Series OFF-state Low Dissipation Current 1A Output, Low Power-Loss Voltag.

PQ05RA11 Features

* ¡Low power-loss (Dropout voltage : MAX.0.5V) ¡Compact resin full-mold package ¡OFF-state low dissipation current (Iqs:1µA, 1/104 as compared to former model PQ05RF1) ¡Built-in ON/OFF control function 29.1MAX s Outline Dimensions 10.2MAX 3.6±0.2 (Unit : mm) 4.5±0.2 2.8±0.2 7.4±0.2 PQ05RA1 ¡ Seri

PQ05RA11 Applications

* 4-1.4 4-0.6 +0.3 -0 +0.2 -0.1 3-(2.54) (0.5) s Model Line-ups Output voltage Output voltage precision:±5% Output voltage precision:±2.5% 5V Output PQ05RA1 PQ05RA11 9V Output PQ09RA1 PQ09RA11 12V Output PQ12RA1 PQ12RA11 Internal connection diagram 1 Specific IC 4 3 2 1 DC input (VIN) 2 DC outpu

📥 Download Datasheet

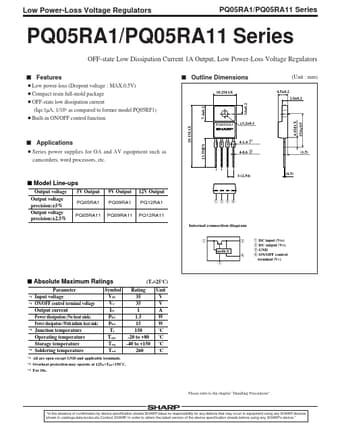

Preview of PQ05RA11 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PQ05RA11
Manufacturer
Sharp
File Size
41.80 KB
Datasheet
PQ05RA11_SharpElectrionicComponents.pdf
Description
OFF-state Low Dissipation Current 1A Output / Low Power-Loss Voltage Regulators
