PQ05RD11 - 1A Output / General Purpose Low Power-loss Voltage Regulators

PQ05RD11 Description

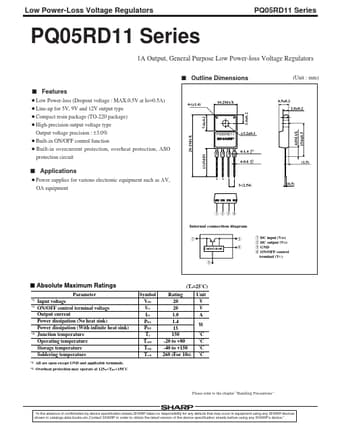

Low Power-Loss Voltage Regulators PQ05RD11 Series PQ05RD11 Series 1A Output, General Purpose Low Power-loss Voltage Regulators s Outline Dimensions .

PQ05RD11 Features

* ¡Low Power-loss (Dropout voltage : MAX.0.5V at Io=0.5A) ¡Line-up for 5V, 9V and 12V output type ¡Compact resin package (TO-220 package) ¡High-precision output voltage type Output voltage precision : ±3.0% ¡Built-in ON/OFF control function ¡ Built-in overcurrent protection, overheat protection, ASO p

PQ05RD11 Applications

* ¡Power supplies for various electronic equipment such as AV, OA equipment 3-(2.54) (0.5) 1 2 3 4 Internal connection diagram 1 Control circuit 2 4 1 DC input (VIN) 2 DC output (VO) 3 GND 4 ON/OFF control terminal (VC) 3 s Absolute Maximum Ratings Parameter
* 1
* 1 (Ta=25˚C) Symbol VIN V
