PQ05RD21 - Low Power-Loss Voltage Regulator

Sharp

Datasheet Details

Part number	PQ05RD21
Manufacturer	Sharp
File Size	21.28 KB
Description	Low Power-Loss Voltage Regulator
Datasheet	PQ05RD21_SharpElectrionicComponents.pdf

Sharp's PQ05RD21 series is 2.0A output type low power-loss voltage regulator(TO-220).

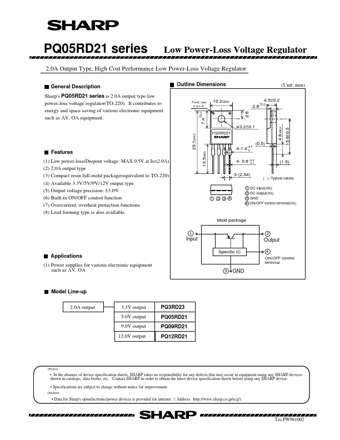

(1) Low power-loss(Dropout voltage: MAX 0.5V at Io=2.0A) (2) 2.0A output type (3) Compact resin full-mold package(equivalent to TO-220) (4) Available 3.3V/5V/9V/12V output type (5) Output voltage precision: ±3.0% (6) Built-in ON/OFF control function (7) Overcurrent, overheat protection functions (8) Lead forming type is also available. 4-1.4 +0.3 -0 4- 0.6 +0.2 -0.1 3-(2.54) 1 2 3 4 (1.5) ( ): Typical values 1 2 3 4 DC input(Vin) DC output(Vo) GND ON/OFF control terminal(Vc) Mold package.
