PQ1CZ41H2Z - Chopper Regulators

PQ1CZ41H2Z Description

Chopper Regulators PQ1CZ41H2Z PQ1CZ41H2Z TO-220 Type Chopper Regulator, built-in 300kHz oscillation circuit I .

PQ1CZ41H2Z Features

* G Maximum switching current: 1.5A G Built-in ON/OFF control function G Built-in soft start function to suppress overshoot of output voltage in power on sequence or ON/OFF control sequence G Built-in oscillation circuit (Oscillation frequency: TYP. 300kHz) G Built-in overheat protection function, ove

PQ1CZ41H2Z Applications

* G Color TV,STB G LCD monitors G Facsimiles,plinters and other OA equipment G CD-ROM drives/DVD-ROM drives G Air conditioners I Outline Dimensions (Unit : mm) 9.7 MAX. 2.5 MIN. 5.5 ±0.5 6.6 MAX. 5.2 ±0.5 1CZ41H ( ) : Typical dimensions 2.3 ±0.5 (0.5) 3 Epoxy resin (1.7) (0 to 0.25) 0.5 +0.2

📥 Download Datasheet

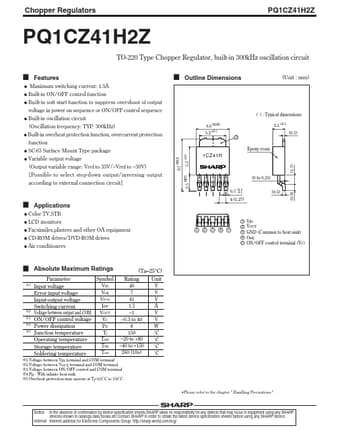

Preview of PQ1CZ41H2Z PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PQ1CZ41H2Z
Manufacturer
Sharp
File Size
74.00 KB
Datasheet
PQ1CZ41H2Z_Sharp.pdf
Description
Chopper Regulators
