PQ1CZ38M2Z Datasheet, circuit equivalent, Sharp Electrionic

PQ1CZ38M2Z Features

  • Circuit I Outline Dimensions (Unit : mm) 2.5 Maximum switching current: 0.8A G Built-in ON/OFF control function G Built-in soft start function to suppress overshoot of output voltage in po

PDF File Details

Part number:

PQ1CZ38M2Z

Manufacturer:

Sharp Electrionic

File Size:

117.10kb

Download:

📄 Datasheet

Description:

Chopper regulator built-in 300khz oscillation circuit.

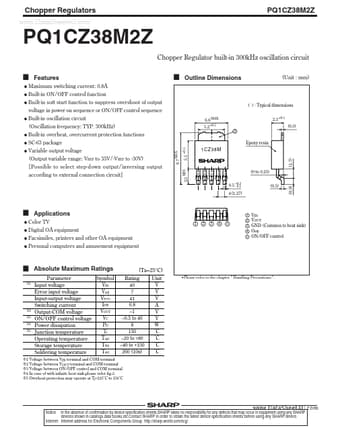

Datasheet Preview: PQ1CZ38M2Z 📥 Download PDF (117.10kb)
Page 2 of PQ1CZ38M2Z Page 3 of PQ1CZ38M2Z

PQ1CZ38M2Z Application

  • Applications 1 2 3 4 5 Color TV G Digital OA equipment G Facsimiles, printers and other OA equipment G Personal computers and amusement equipment
