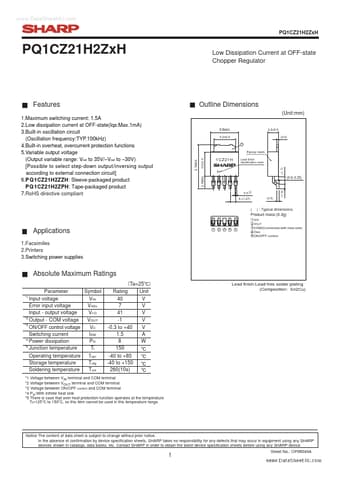

PQ1CZ21H2ZXH Datasheet, Regulator, Sharp Electrionic

PQ1CZ21H2ZXH Features

• Regulator 1.Maximum switching current: 1.5A 2.Low dissipation current at OFF-state(Iqs:Max.1mA) 3.Built-in oscillation circuit (Oscillation frequency:TYP.100kHz) 4.Built-in overheat, overcurrent

PDF File Details

Part number:

PQ1CZ21H2ZXH

Manufacturer:

Sharp Electrionic

File Size:

160.96kb

Download:

📄 Datasheet

Description:

Low dissipation current at off-state chopper regulator.

PQ1CZ21H2ZXH Application

• Applications 1.Facsimiles 2.Printers 3.Switching power supplies 1 2 3 4 5 Absolute Maximum Ratings Parameter Symbol
• 1 VIN Input volta
