PQ1CZ41H2ZPH, PQ1CZ41H2ZXH - TO-220 Type Chopper Regulator

PQ1CZ41H2ZPH Description

www.DataSheet4U.com PQ1CZ41H2ZxH PQ1CZ41H2ZxH TO-220 Type Chopper Regulator, built-in 300kHz oscillation circuit .

PQ1CZ41H2ZPH Features

* 1.Maximum switching current: 1.5A 2.Built-in ON-OFF control function 3.Built-in soft start function to suppress overshoot of output voltage in power on sequence or ON/OFF control sequence 4.Built-in oscillation circuit (Oscillation frequency:TYP.300kHz) 5.Built-in overheat protection function,overcu

PQ1CZ41H2ZPH Applications

* 1.Color TV,STB 2.LCD monitors 3.Facsimiles,plinters and other OA equipment 4.CD-ROM drives/DVD-ROM drivers 5.Air conditioners Absolute Maximum Ratings Parameter Symbol
* 1 VIN Input voltage Error input voltage VADJ Input - output voltage VI-O
* 2 Output - COM voltage VOUT
* 3 VC ON/OFF con

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PQ1CZ41H2ZPH, PQ1CZ41H2ZXH. Please refer to the document for exact specifications by model.

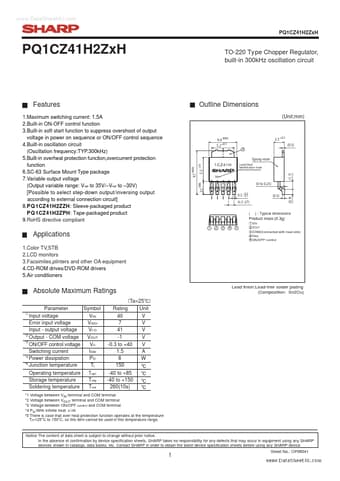

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PQ1CZ41H2ZPH, PQ1CZ41H2ZXH
Manufacturer
Sharp Electrionic
File Size
183.53 KB
Datasheet
PQ1CZ41H2ZXH_SharpElectrionic.pdf
Description
TO-220 Type Chopper Regulator
Note
This datasheet PDF includes multiple part numbers: PQ1CZ41H2ZPH, PQ1CZ41H2ZXH.
Please refer to the document for exact specifications by model.
