PQ1CZ21H2ZZH Datasheet, regulator equivalent, Sharp Electrionic

PQ1CZ21H2ZZH Features

  • Regulator 1.Maximum switching current: 1.5A 2.Low dissipation current at OFF-state(Iqs:Max.1mA) 3.Built-in oscillation circuit (Oscillation frequency:TYP.100kHz) 4.Built-in overheat, overcurrent

PDF File Details

Part number:

PQ1CZ21H2ZZH

Manufacturer:

Sharp Electrionic

File Size:

160.96kb

Download:

📄 Datasheet

Description:

Low dissipation current at off-state chopper regulator.

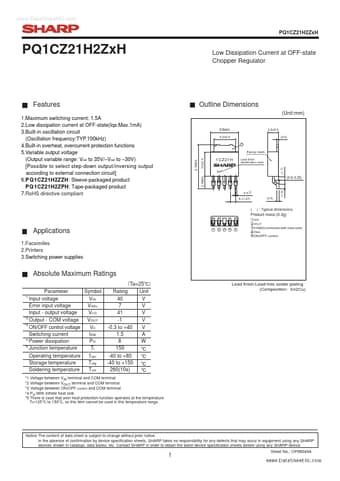

Datasheet Preview: PQ1CZ21H2ZZH 📥 Download PDF (160.96kb)
Page 2 of PQ1CZ21H2ZZH Page 3 of PQ1CZ21H2ZZH

PQ1CZ21H2ZZH Application

  • Applications 1.Facsimiles 2.Printers 3.Switching power supplies 1 2 3 4 5 Absolute Maximum Ratings Parameter Symbol
  • 1 VIN Input volta
