D2196 2SD2196

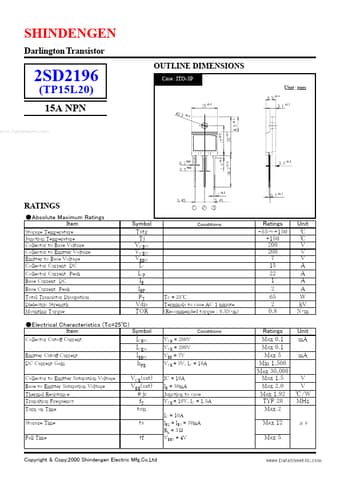

SHINDENGEN Darlington Transistor 2SD2196 (TP15L20) 15A NPN www.DataSheet4U.com OUTLINE DIMENSIONS Case : ITO-3P Unit : mm RATINGS Absolute Maximum Ratings Item Storage Temperature Junction Temperature Collector to Base Voltage Collector to Emitter Voltage Emitter to Base Voltage Collector Current DC Collector Current Peak Base Current DC Base Current Peak Total Transistor Dissipation Dielectric Strength Mounting Torque Symbol Tstg Tj V CBO V CEO V EBO IC ICP IB IBP PT Vdis TOR Conditi.
