BBY57-02W Datasheet - Siemens Group

BBY57-02W Silicon Tuning Diode (Excellent linearity High Q hyperabrupt tuning diode Low series inductance High capacitance ratio)

BBY 57-02W Silicon Tuning Diode Preliminary data Excellent linearity High Q hyperabrupt tuning diode Low series inductance High capacitance ratio Designed for low tuning voltage operation for VCO’s in mobile communications equipment For control elements such as TCXOs and VCXOs 2 1 VES05991 Type BBY 57-02W Marking 5 Ordering Code Q62702-B915 Pin Configuration 1=C 2=A Package SCD-80 Maximum Ratings Parameter Diode reverse voltage.

BBY57-02W_SiemensSemiconductorGroup.pdf

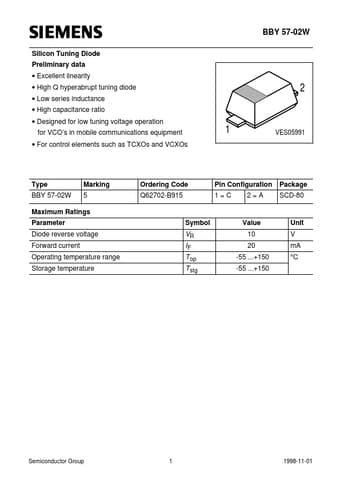

Preview of BBY57-02W PDF
BBY57-02W Datasheet Preview Page 2 BBY57-02W Datasheet Preview Page 3

Datasheet Details

Part number:

BBY57-02W

Manufacturer:

Siemens Group

File Size:

14.48 KB

Description:

Silicon tuning diode (excellent linearity high q hyperabrupt tuning diode low series inductance high capacitance ratio).
