BBY57-03W Datasheet - Siemens Group

BBY57-03W Silicon Tuning Diode (Excellent linearity High Q hyperabrupt tuning diode Low series inductance)

BBY 57-03W Silicon Tuning Diode Preliminary data Excellent linearity High Q hyperabrupt tuning diode Low series inductance High capacitance ratio Designed for low tuning voltage operation for VCO’s in mobile communications equipment For control elements such as TCXOs and VCXOs 2 1 VPS05176 Type BBY 57-03W Marking 5 cathd.red Ordering Code Q62702-B918 Pin Configuration 1=C 2=A Package SOD-323 Maximum Ratings Parameter Diode reve.

BBY57-03W_SiemensSemiconductorGroup.pdf

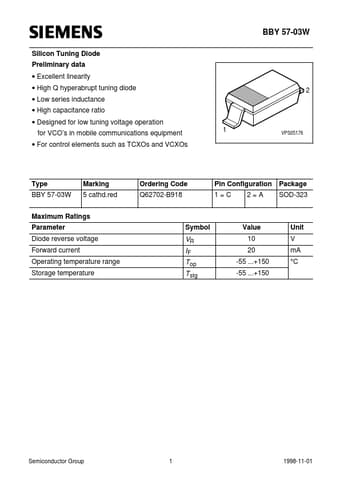

Preview of BBY57-03W PDF
BBY57-03W Datasheet Preview Page 2 BBY57-03W Datasheet Preview Page 3

Datasheet Details

Part number:

BBY57-03W

Manufacturer:

Siemens Group

File Size:

14.58 KB

Description:

Silicon tuning diode (excellent linearity high q hyperabrupt tuning diode low series inductance).
