BAR63-03 Datasheet - Siemens Semiconductor Group

BAR63-03 Silicon PIN Diode (PIN diode for high speed switching of RF signals Low forward resistance Very low capacitance For frequencies up to 3 GHz)

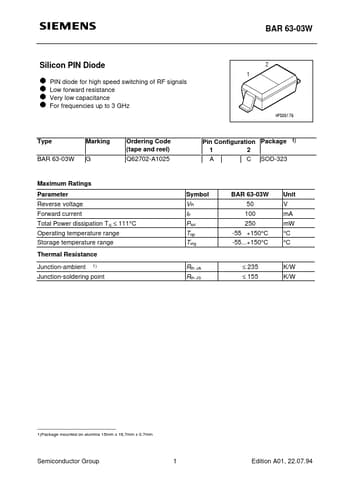

BAR 63-03W Silicon PIN Diode l PIN diode for high speed switching of RF signals l Low forward resistance l Very low capacitance l For frequencies up to 3 GHz Type BAR 63-03W Marking G Ordering Code (tape and reel) Q62702-A1025 Pin Configuration Package 1 2 A C SOD-323 1) Maximum Ratings Parameter Reverse voltage Forward current Total Power dissipation TS ≤ 111°C Operating temperature range Storage temperature range Thermal Resistance Junction-ambient 1) Symbol BAR 63-03W 50 100 250 -55 +150.

BAR63-03_SiemensSemiconductorGroup.pdf

BAR63-03 Datasheet Preview — Preview of BAR63-03 PDF

Datasheet Details

Part number:

BAR63-03

Manufacturer:

Siemens Semiconductor Group

File Size:

52.18 KB

Description:

Silicon pin diode (pin diode for high speed switching of rf signals low forward resistance very low capacitance for frequencies up to 3 ghz).
