BAR63V-02V - RF PIN Diode

Datasheet Summary

Description

Characterized by a very low reverse Capacitance the PIN Diode BAR63V-02V was designed for RF signal tuning.

As a function of the forward bias current the forward resistance (rf) can be adjusted to less than 1 Ω while the low reverse capacitance offers a high isolation.

Features

  • Low forward resistance.
  • Space saving SOD-523 package with low series inductance.
  • Very small reverse capacitance.
  • Lead (Pb)-free component.
  • Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC RF-signal tuning Mobile, wireless and TV-.

📥 Download Datasheet

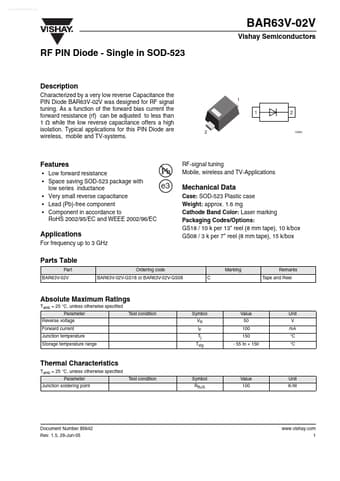

Datasheet preview – BAR63V-02V
