BAR63V-04W

RF PIN Diode

BAR63V-04W Features

* Low forward resistance

* Very small reverse capacitance Applications For frequency up to 3 GHz RF-signal tuning Mobile , wireless and TV-Applications Mechanical Data Case: Plastic case (SOT-323) Weight: approx. 6.0 mg Packaging Codes/Options: GS18 / 10 k per 13" reel (8 mm tape),

BAR63V-04W General Description

Characterized by a very low reverse Capacitance the PIN Diode BAR63V-04W was designed for RF signal tuning. As a function of the forward bias current the forward resistance (rf) can be adjusted to less than 1 Ω while the low reverse capacitance offers a high isolation. Typical applications for this .

BAR63V-04W Datasheet (153.13 KB)

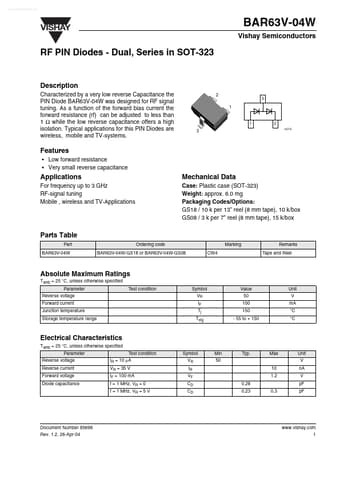

Preview of BAR63V-04W PDF

Datasheet Details

Part number:

BAR63V-04W

Manufacturer:

Vishay ↗ Siliconix

File Size:

153.13 KB

Description:

Rf pin diode.
