BAR63-04W Datasheet - Siemens Semiconductor Group

BAR63-04W Silicon PIN Diode (PIN diode for high speed switching of RF signal Low forward resistance Very low capacitance For frequencies up to 3 GHz)

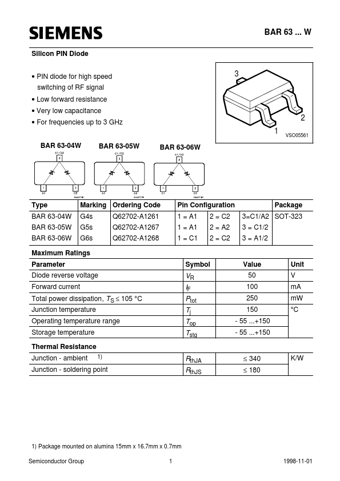

BAR 63 W Silicon PIN Diode PIN diode for high speed switching of RF signal Low forward resistance Very low capacitance For frequencies up to 3 GHz 3 2 1 VSO05561 BAR 63-04W BAR 63-05W BAR 63-06W Type BAR 63-04W BAR 63-05W BAR 63-06W Marking Ordering Code G4s G5s G6s Q62702-A1261 Q62702-A1267 Q62702-A1268 Pin Configuration 1 = A1 1 = A1 1 = C1 2 = C2 2 = A2 2 = C2 3 = C1/2 3 = A1/2 Package 3=C1/A2 SOT-323 Maximum Ratings Parameter Diode reverse v.

BAR63-04W_SiemensSemiconductorGroup.pdf

BAR63-04W Datasheet Preview — Preview of BAR63-04W PDF

Datasheet Details

Part number:

BAR63-04W

Manufacturer:

Siemens Semiconductor Group

File Size:

46.16 KB

Description:

Silicon pin diode (pin diode for high speed switching of rf signal low forward resistance very low capacitance for frequencies up to 3 ghz).
