Q62702-A1190 Datasheet - Siemens Semiconductor Group

Q62702-A1190 Silicon Schottky Diode (Low-power Schottky rectifier diode Miniature plastic package for surface mounting SMD)

BAT 165 Silicon Schottky Diode Preliminary data Low-power Schottky rectifier diode Miniature plastic package for surface mounting (SMD) 2 1 VPS05176 ESD: Electrostatic discharge sensitive device, observe handling precaution! Type BAT 165 Marking White/C Ordering Code Q62702-A1190 Pin Configuration 1=C 2=A Package SOD-323 Maximum Ratings Parameter Diode reverse voltage Forward current Average forward current (50/60Hz, sinus) Surge forward current (t < 100µs) Total power d.

Q62702-A1190_SiemensSemiconductorGroup.pdf

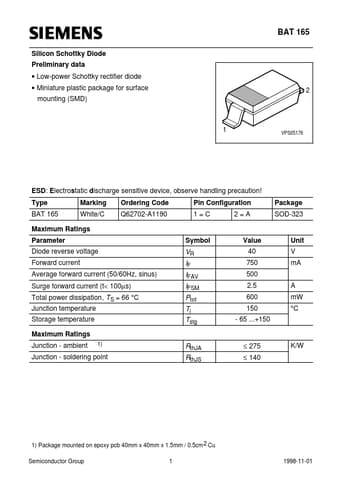

Preview of Q62702-A1190 PDF
Q62702-A1190 Datasheet Preview Page 2 Q62702-A1190 Datasheet Preview Page 3

Datasheet Details

Part number:

Q62702-A1190

Manufacturer:

Siemens Semiconductor Group

File Size:

23.91 KB

Description:

Silicon schottky diode (low-power schottky rectifier diode miniature plastic package for surface mounting smd).
