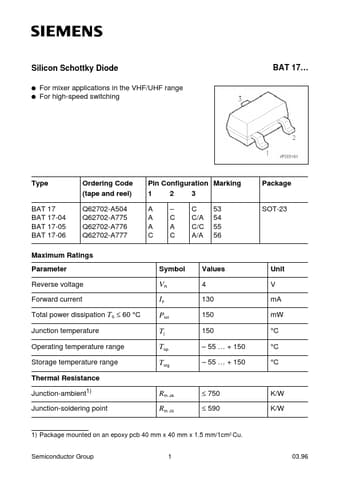

Silicon Schottky Diode
q q
BAT 17…
For mixer applications in the VHF/UHF range For high-speed switching
Type
Ordering Code (tape and reel) Q62702-A504 Q62702-A775 Q62702-A776 Q62702-A777
Pin Configuration Marking 1 2 3 A A A C – C A C C C/A C/C A/A 53 54 55 56
Package
BAT 17 BAT 17-04 BAT 17-05 BAT 17-06
SOT-23
Maximum Ratings Parameter Reverse voltage Forward current Total power dissipation TS ≤ 60 °C Junction temperature Operating temperature range Storage temperature range Thermal Resistance Junction-ambient1) Junction-soldering point Symbol Values 4 130 150 150 – 55 … + 150 – 55 … + 150 Unit V mA mW °C °C °C
VR IF Ptot Tj Top Tstg
Rth JA Rth JS
≤ 750 ≤ 590
K/W K/W
1) Package mounted on an epoxy pcb 40 mm x 40 mm x 1.5 mm/1cm2 Cu. Semiconductor Group 1 03.
