Q62702-C1698 Datasheet (271.92 KB)
Q62702-C1698
Siemens Semiconductor Group
271.92 KB

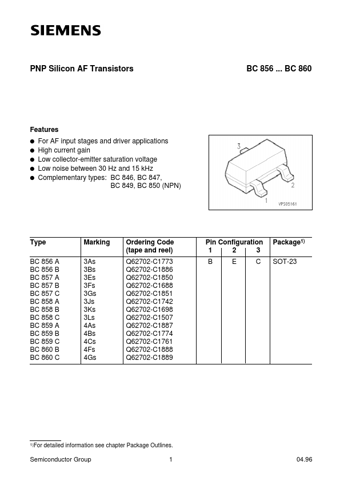

Pnp silicon af transistors (for af input stages and driver applications high current gain low collector-emitter saturation voltage).
* q q q q q For AF input stages and driver applications High current gain Low collector-emitter saturation voltage Low noise between 30 Hz and 15 kHz Complementary types: BC 846, BC 847, BC 849, BC 850 (NPN) Type BC 856 A BC 856 B BC 857 A BC 857 B BC 857 C BC 858 A BC 858 B BC 858 C BC 859 A BC 859
