Q62702-C2259 Datasheet - Siemens Semiconductor Group

Q62702-C2259 NPN Silicon Digital Transistor (Switching circuit/ inverter/ interface circuit/ drver circuit)

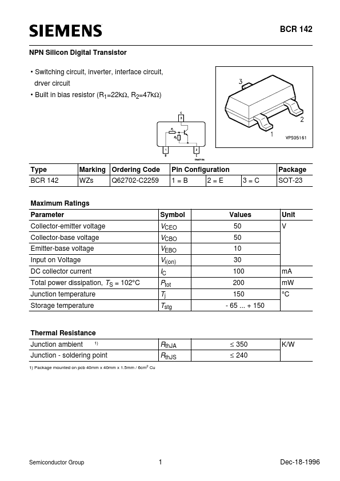

BCR 142 NPN Silicon Digital Transistor Switching circuit, inverter, interface circuit, drver circuit Built in bias resistor (R1=22kΩ, R2=47kΩ) Type BCR 142 Marking Ordering Code WZs Q62702-C2259 Pin Configuration 1=B 2=E 3=C Package SOT-23 Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage Input on Voltage DC collector current Total power dissipation, TS = 102°C Junction temperature Storage temperature Symbol Values 50 50 10 3.

Q62702-C2259 Datasheet (35.37 KB)

Q62702-C2259 Datasheet Preview — Preview of Q62702-C2259 PDF

Datasheet Details

Part number:

Q62702-C2259

Manufacturer:

Siemens Semiconductor Group

File Size:

35.37 KB

Description:

Npn silicon digital transistor (switching circuit/ inverter/ interface circuit/ drver circuit).
