Q62702-C2257 Datasheet - Siemens Semiconductor Group

Q62702-C2257 NPN Silicon Digital Transistor (Switching circuit/ inverter/ interface circuit/ driver circuit)

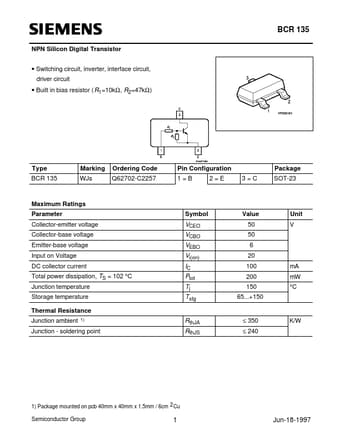

BCR 135 NPN Silicon Digital Transistor Switching circuit, inverter, interface circuit, driver circuit Built in bias resistor ( R1 =10kΩ , R2=47kΩ ) Type BCR 135 Marking WJs Ordering Code Q62702-C2257 Pin Configuration 1=B 2=E 3=C Package SOT-23 Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage Input on Voltage DC collector current Total power dissipation, TS = 102 °C Junction temperature Storage temperature Symbol Value 50 5.

Q62702-C2257_SiemensSemiconductorGroup.pdf

Q62702-C2257 Datasheet Preview — Preview of Q62702-C2257 PDF

Datasheet Details

Part number:

Q62702-C2257

Manufacturer:

Siemens Semiconductor Group

File Size:

51.02 KB

Description:

Npn silicon digital transistor (switching circuit/ inverter/ interface circuit/ driver circuit).
