Q62702-C2253 NPN Silicon Digital Transistor (Switching circuit/ inverter/ interface circuit/ driver circuit

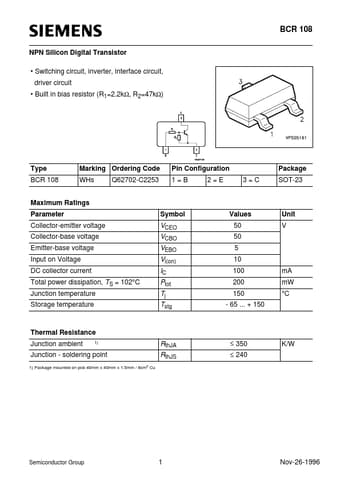

BCR 108 NPN Silicon Digital Transistor Switching circuit, inverter, interface circuit, driver circuit Built in bias resistor (R1=2.2kΩ, R2=47kΩ) Type BCR 108 Marking Ordering Code WHs Q62702-C2253 Pin Configuration 1=B 2=E 3=C Package SOT-23 Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage Input on Voltage DC collector current Total power dissipation, TS = 102°C Junction temperature Storage temperature Symbol Values 50 50 5 .

Q62702-C2253_SiemensSemiconductorGroup.pdf

Q62702-C2253 Datasheet Preview — Preview of Q62702-C2253 PDF

Datasheet Details

Part number:

Q62702-C2253

Manufacturer:

Siemens Semiconductor Group

File Size:

35.40 KB

Description:

Npn silicon digital transistor (switching circuit/ inverter/ interface circuit/ driver circuit.
