Q62702-C2496 NPN/PNP Silicon Digital Tansistor Array (Switching circuit/ inverter/ interface circuit/ drive circuit)

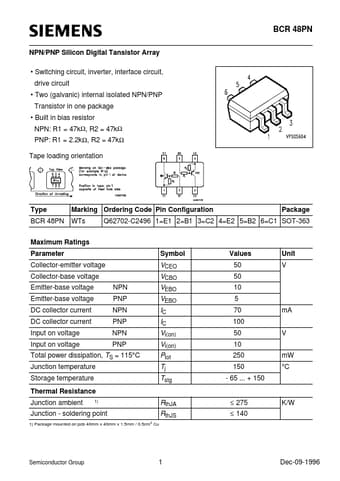

BCR 48PN NPN/PNP Silicon Digital Tansistor Array Switching circuit, inverter, interface circuit, drive circuit Two (galvanic) internal isolated NPN/PNP Transistor in one package Built in bias resistor NPN: R1 = 47kΩ, R2 = 47kΩ PNP: R1 = 2.2kΩ, R2 = 47kΩ Tape loading orientation Type BCR 48PN Marking Ordering Code Pin Configuration WTs Package Q62702-C2496 1=E1 2=B1 3=C2 4=E2 5=B2 6=C1 SOT-363 Maximum Ratings Parameter Collector-emitter voltage Collector-base vo.

Q62702-C2496 Datasheet (68.00 KB)

Q62702-C2496 Datasheet Preview — Preview of Q62702-C2496 PDF

Datasheet Details

Part number:

Q62702-C2496

Manufacturer:

Siemens Semiconductor Group

File Size:

68.00 KB

Description:

Npn/pnp silicon digital tansistor array (switching circuit/ inverter/ interface circuit/ drive circuit).
