Silan Microelectronics

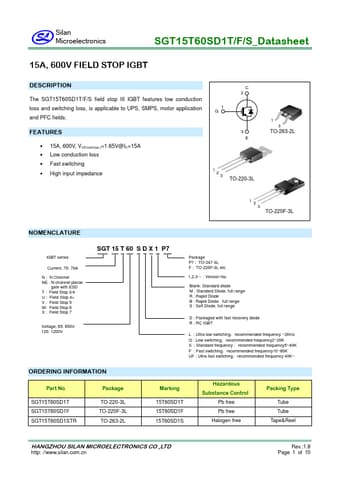

SGT15T60SD1T/F/S_Datasheet
15A, 600V FIELD STOP IGBT
DESCRIPTION
C
2
The SGT15T60SD1T/F/S field stop III IGBT features low conduction
loss and switching loss, is applicable to UPS, SMPS, motor application
1 G
and PFC fields.
FEATURES
15A, 600V, VCE(sat)(typ.)=1.65V@IC=15A Low conduction loss Fast switching High input impedance
3 E
1 2
3 TO-220-3L
1
3
TO-263-2L
12 3
TO-220F-3L
NOMENCLATURE
IGBT series
Current, 70: 70A
N : N Channel NE : N-channel planar
gate with ESD T : Field Stop 3/4 U : Field Stop 4+ V : Field Stop 5 W: Field Stop 6 X : Field Stop 7
Voltage, 65: 650V 120: 1200V
SGT 15 T 60 S D X 1 P7
Package P7 : TO-247-3L F : TO-220F-3L etc.
1,2,3… : Version No.
