SVD8N60T, SVD8N60F Datasheet - Silan Microelectronics

SVD8N60T 600V N-CHANNEL MOSFET

SVD8N60T/F is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary S-RinTM structure DMOS technology. The improved planar stripe cell and the improved guarding ring terminal have been especially tailored to minimize on-state resistance, provide su.

SVD8N60T Features

* ∗ 8A,600V,RDS(on) typ =0.96Ω@VGS=10V ∗ Low gate charge ∗ Low Crss ∗ Fast switching ∗ Improved dv/dt capability ORDERING SPECIFICATIONS Part No. SVD8N60T SVD8N60F Package TO-220-3L TO-220F-3L Marking SVD8N60T SVD8N60F Shipping 50Unit/Tube 50Unit/Tube ABSOLUTE MAXIMUM RATINGS (Tc=25°C unless otherwi

SVD8N60F_SilanMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: SVD8N60T, SVD8N60F. Please refer to the document for exact specifications by model.

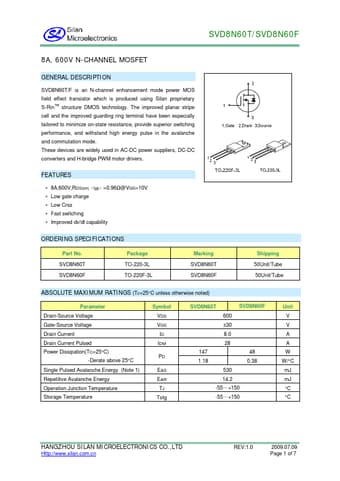

SVD8N60T Datasheet Preview Page 2 SVD8N60T Datasheet Preview Page 3

Datasheet Details

Part number:

SVD8N60T, SVD8N60F

Manufacturer:

Silan Microelectronics

File Size:

526.75 KB

Description:

600v n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: SVD8N60T, SVD8N60F.
Please refer to the document for exact specifications by model.
