SVF12N60FG

600V N-CHANNEL MOSFET

SVF12N60FG Features

* ∗ 12A,600V,RDS(on)(typ)=0.58Ω@VGS=10V ∗ Low gate charge ∗ Low Crss ∗ Fast switching ∗ Improved dv/dt capability NOMENCLATURE ORDERING INFORMATION Part No. SVF12N60T SVF12N60F SVF12N60FG SVF12N60S SVF12N60STR SVF12N60K Package TO-220-3L TO-220F-3L TO-220F-3L TO-263-2L TO-263-2L TO-262-3L Marking SV

SVF12N60FG General Description

SVF12N60T/F/FG/S/K is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology. The improved planar stripe cell and the improved guard ring terminal have been especially tailored to minimize on-state resistance, pro.

SVF12N60FG Datasheet (335.09 KB)

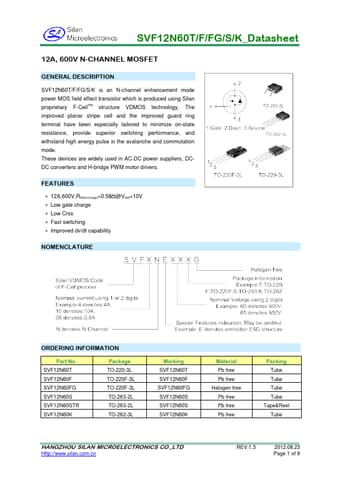

Preview of SVF12N60FG PDF

Datasheet Details

Part number:

SVF12N60FG

Manufacturer:

Silan Microelectronics

File Size:

335.09 KB

Description:

600v n-channel mosfet.
