SVF13N50T Datasheet - SL

SVF13N50T 500V N-CHANNEL MOSFET

SVF13N50T/F/PN is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performan.

SVF13N50T Features

* 13A, 500V, RDS(on)(typ.)= 0.44@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability ORDERING INFORMATION Part No. SVF13N50F SVF13N50T SVF13N50PN Package TO-220F-3L TO-220-3L TO-3P Marking SVF13N50F SVF13N50T 13N50 Hazardous Substance Control P

SVF13N50T-SL.pdf

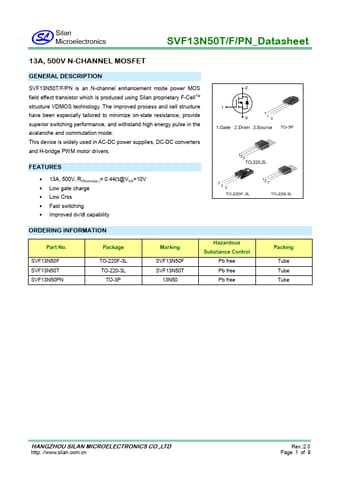

Preview of SVF13N50T PDF
SVF13N50T Datasheet Preview Page 2 SVF13N50T Datasheet Preview Page 3

Datasheet Details

Part number:

SVF13N50T

Manufacturer:

SL

File Size:

564.76 KB

Description:

500v n-channel mosfet.
