500V N-CHANNEL MOSFET

SVF13N50CFJ Features

* 13A, 500V, RDS(on)(typ.)= 0.44@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability 2 1 3 1.Gate 2.Drain 3.Source 12 3 TO-220FJ-3L ORDERING INFORMATION Part No. SVF13N50CFJ Package TO-220FJ-3L Marking 13N50CFJ Hazardous Substance Control Halo

SVF13N50CFJ General Description

SVF13N50CFJ is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance,.

SVF13N50CFJ Datasheet (284.73 KB)

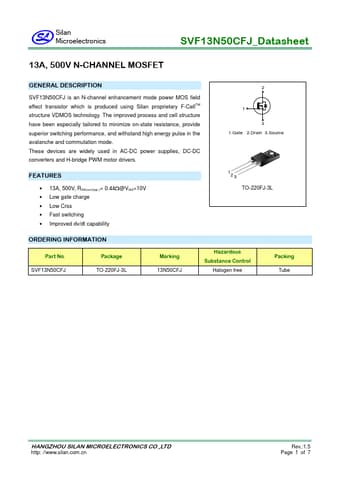

SVF13N50CFJ Datasheet Preview — Preview of SVF13N50CFJ PDF

Datasheet Details

Part number:

SVF13N50CFJ

Manufacturer:

Silan Microelectronics

File Size:

284.73 KB

Description:

500v n-channel mosfet.
