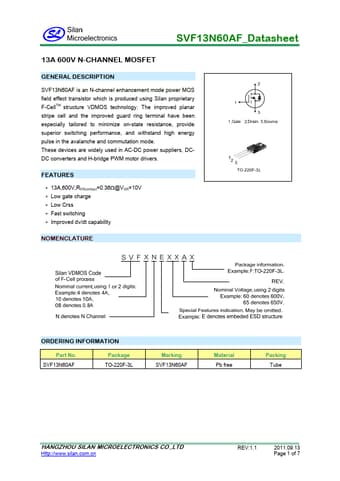

SVF13N60AF MOSFET

SVF13N60AF is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology. The improved planar stripe cell and the improved guard ring terminal have been especially tailored to minimize on-state resistance, provide sup.

SVF13N60AF Features

* ∗ 13A,600V,RDS(on(typ)=0.36Ω@VGS=10V ∗ Low gate charge ∗ Low Crss ∗ Fast switching ∗ Improved dv/dt capability NOMENCLATURE ORDERING INFORMATION Part No. SVF13N60AF Package TO-220F-3L Marking SVF13N60AF Material Pb free Packing Tube HANGZHOU SILAN MICROELECTRONICS CO.,LTD Http://www.silan.com
