SVF1N60B

600V N-CHANNEL MOSFET

SVF1N60B Features

* ∗ 1A,600V,RDS(on)（typ.）=8.2Ω@VGS=10V ∗ Low gate charge ∗ Low Crss ∗ Fast switching ∗ Improved dv/dt capability NOMENCLATURE ORDERING INFORMATION Part No. SVF1N60M SVF1N60M SVF1N60MJ SVF1N60N SVF1N60B SVF1N60BTR SVF1N60D SVF1N60DTR Package TO-251-3L TO-251D-3L TO-251J-3L TO-126-3L TO-92-3L TO-92-3

SVF1N60B General Description

SVFM/MJ/N/B/D is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology. The improved planar stripe cell and the improved guard ring terminal have been especially tailored to minimize on-state resistance, provide .

SVF1N60B Datasheet (529.17 KB)

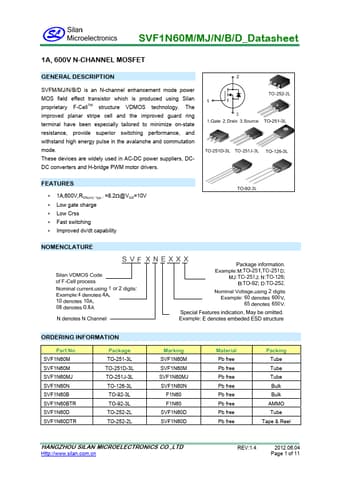

Preview of SVF1N60B PDF

Datasheet Details

Part number:

SVF1N60B

Manufacturer:

Silan Microelectronics

File Size:

529.17 KB

Description:

600v n-channel mosfet.
