SVF3N80M Datasheet - Silan Microelectronics

800V N-CHANNEL MOSFET

SVF3N80M Features

* ∗ 3A, 800V, RDS(on)(typ.)=3.8Ω@VGS=10V ∗ Low gate charge ∗ Low Crss ∗ Fast switching ∗ Improved dv/dt capability NOMENCLATURE ORDERING INFORMATION Part No. SVF3N80M SVF3N80F SVF3N80D SVF3N80DTR Package Type TO-251-3L TO-220F-3L TO-252-2L TO-252-2L Marking SVF3N80M SVF3N80F SVF3N80D SVF3N80D Mat

SVF3N80M General Description

SVF3N80M/F/D is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology. The improved planar stripe cell and the improved guard ring terminal have been especially tailored to minimize on-state resistance, provide s.

SVF3N80M Datasheet (608.65 KB)

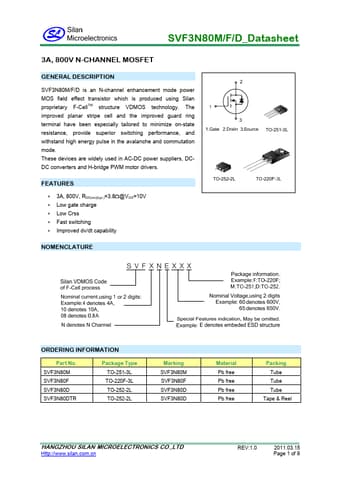

SVF3N80M Datasheet Preview — Preview of SVF3N80M PDF

Datasheet Details

Part number:

SVF3N80M

Manufacturer:

Silan Microelectronics

File Size:

608.65 KB

Description:

800v n-channel mosfet.
