SVF3N80T, SVF3N80MJ 800V N-CHANNEL MOSFET

Silan Microelectronics

Description

SVF3N80M/MJ/F/D/T/MN_Datasheet 3A, 800V N-CHANNEL MOSFET GENERAL .
SVF3N80M/MJ/F/D/T/MN is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltag.

📥 Download Datasheet

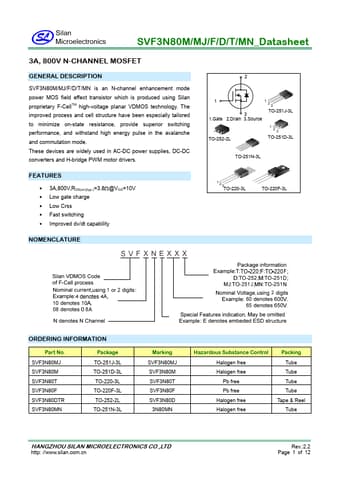

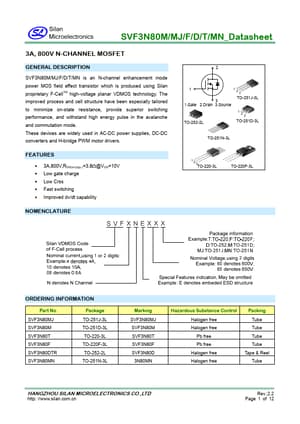

SVF3N80T Datasheet Preview — This datasheet PDF includes multiple part numbers: SVF3N80T, SVF3N80MJ. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SVF3N80T, SVF3N80MJ
Manufacturer: Silan Microelectronics
File Size: 659.76 KB
Datasheet: SVF3N80MJ-SilanMicroelectronics.pdf
Description: 800V N-CHANNEL MOSFET
Note: This datasheet PDF includes multiple part numbers: SVF3N80T, SVF3N80MJ.
Please refer to the document for exact specifications by model.

Features

* 3A,800V,RDS(on)(typ. )=3.8@VGS=10V
* Low gate charge
* Low Crss
* Fast switching
* Improved dv/dt capability NOMENCLATURE 2 1 1.Gate 1 23 TO-251J-3L 3 2.Drain 3.Source TO-252-2L 1 23 TO-251D-3L TO-251N-3L 123 TO-220-3L TO-220F-3L ORDERING INFORMATION Part No. SVF3N80M
