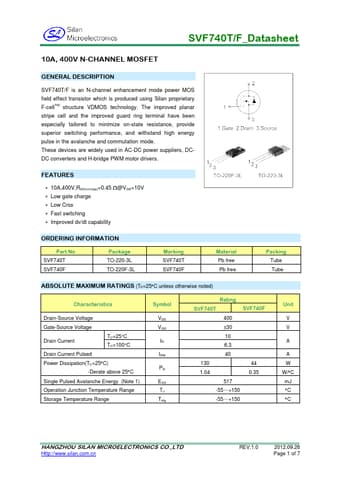

SVF740T Datasheet (Silan Microelectronics)

SVF740T, 400V N-CHANNEL MOSFET

SVF740T/F is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-cellTM structure VDMOS technology.

The improved planar stripe cell and the improved guard ring terminal have been especially tailored to minimize on-state resistance, provide supe

SVF740T Features

* ∗ 10A,400V,RDS(on)(typ)=0.45 Ω@VGS=10V ∗ Low gate charge ∗ Low Crss ∗ Fast switching ∗ Improved dv/dt capability ORDERING INFORMATION Part No. SVF740T SVF740F Package TO-220-3L TO-220F-3L Marking SVF740T SVF740F Material Pb free Pb free Packing Tube Tube ABSOLUTE MAXIMUM RATINGS (Tc=25°C unle
