SLG8SP513

Clock Synthesizer

Silego Technology

SLG8SP513 Features

* Low Power CK505 compatible clock synthesizer

* SLG8SP513 is a cost reduced CK505 with integrated voltage regulator for mobile applications

* Scalable Low Voltage VDD I/O (3.3V to 1.05V) to reduce power consumption

* Low Power differential outputs with integrated ser

SLG8SP513 General Description

Pin # Name 1 VSS_REF 2 XTAL_OUT 3 XTAL_IN 4 VDD_REF 5 REF/FS_C/TEST_S EL 6 SDA 7 SCL 8 PCI_0/CLKREQ_A# 9 VDD_PCI 10 PCI_1/CLKREQ_B# 11 PCI_2 12 PCI_3 13 PCI_4/SEL_LCDCL K# 14 PCIF_5/ITP_EN 15 VSS_PCI 16 VDD_48 17 USB/FS_A 18 VSS_48 19 VDD_I/O 20 SRC_0/DOT_96 21 SRC_0#/DOT_96# 22 VSS_I/O 23 VDD.

SLG8SP513 Datasheet (184.11 KB)

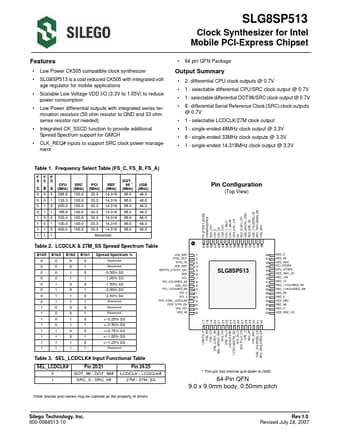

SLG8SP513 Datasheet Preview — Preview of SLG8SP513 PDF

Datasheet Details

Part number:

SLG8SP513

Manufacturer:

Silego Technology

File Size:

184.11 KB

Description:

Clock synthesizer.
