AN-SY7152

High Efficiency 1MHz 2A Step-Up Regulator

AN-SY7152 Features

* Wide input range: 3-8V bias input, 16Vout max

* 1MHz switching frequency

* Minimum on time: 100ns typical

* Minimum off time: 100ns typical

* Low RDS(ON): 150mΩ

* RoHS Compliant and Halogen Free

* Accurate Reference: 0.6VREF

* Compact

AN-SY7152 General Description

The SY7152 is a high efficiency boost regulator targeted for general step-up applications. Ordering Information SY7152

*(

*

*)

* Temperature Code Package Code Optional Spec Code Temperature Range: -40°C to 85°C Ordering Number Package type Note SY7152ABC SOT23-6 2A.

AN-SY7152 Datasheet (0.97 MB)

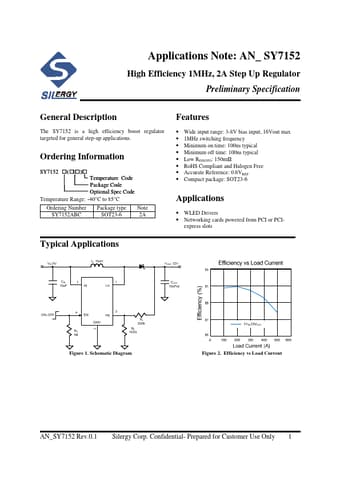

Preview of AN-SY7152 PDF
